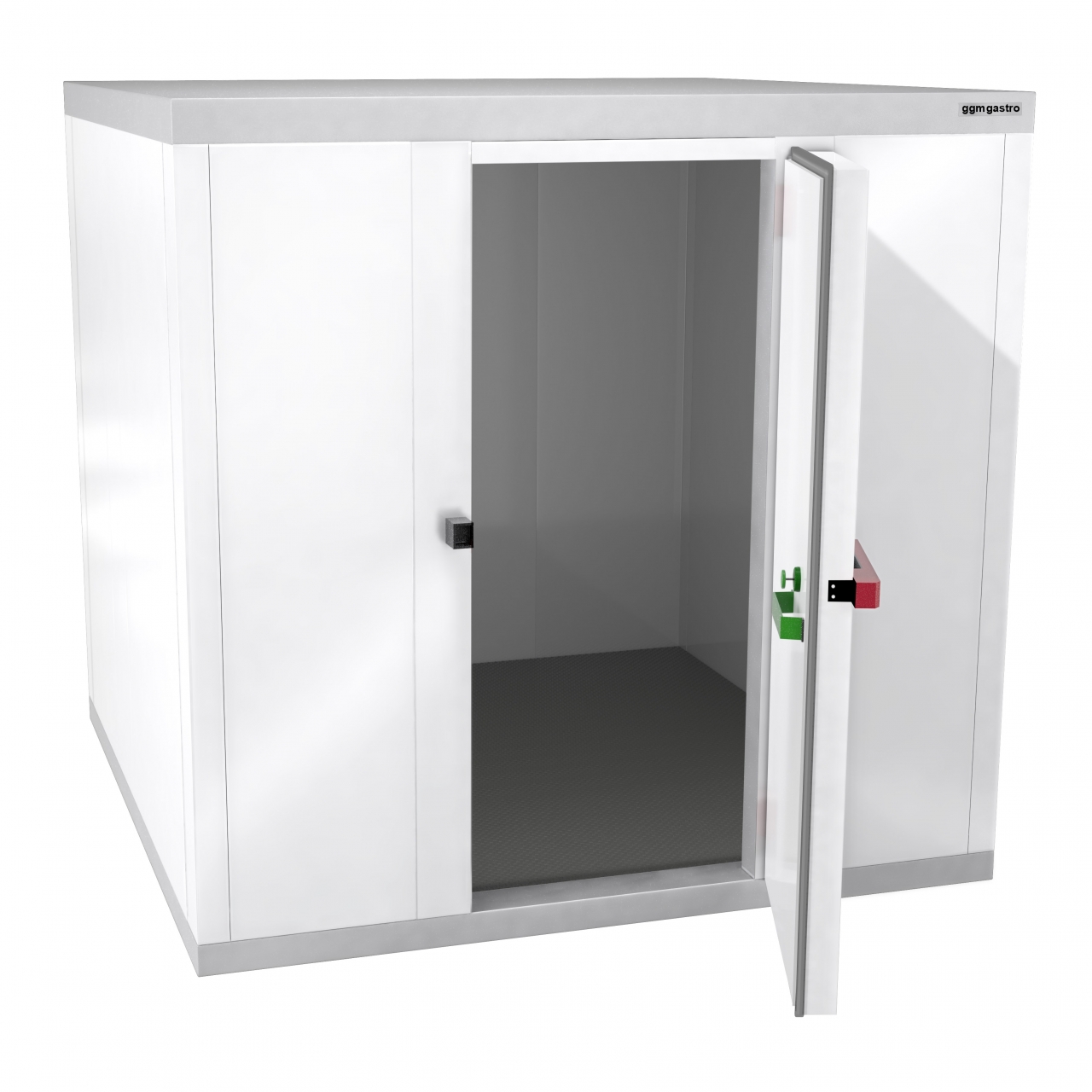

Design

• Top-class cold storage cell
• Prevents extreme low pressure within the cell
• Optimal for stock-keeping
• Particularly hygienic due to easy cleaning
• Long service life (normally 15 Jahre years and more)
• Easy subsequent extension possible

Quality

• Quality product made in Europe
• High precision and stability
• Very resistent and durable
• Compact design

Dimensions

• External dimensions W x D x H: 1250 x 1600 x 2190 mm
• Room volume: 2,87 m³

Wall construction

• Easy mounting
• Lots of space despite compact design
• Interior with integrated emergency opening device
• Foamed turnbuckles for non-positive connection of elements
• Corrosion-resistant turnbuckles create stability & joint sealing
• Element connection by self-centring sealing system

Cell floor

• Subfloor ventilation
• Pressure compensation valve
• Fibre-glass reinforced plastic
• On water resistant glued multiplex plate
• Floor with embossed surface for maximum adhesion
• Floor with patented anti-slip surface (Slip resistance classification R11)
• High level of floor durability thanks to multi-bonded pressure distribution plates

Insulation

• Particularly energy-efficient due to the insulation at the top
• Wall strength 100 mm polyurethane (free of HFC and CFC)

Surface

• Galvanised steel sheet with zinc-aluminium coating
• Colour: white, RAL 9002
• All elements also equipped with protective foil
• Protective foil can be removed after assembly

Door features

• Double door
• Jumbo seal
• Stainless steel door sill
• Lockable
• High impact-resistant special plastic
• Interior with integrated emergency opening device
• Door sealing strips guarantee top-quality seals
• Door and door frame profiles made of special plastic
• Prevents icing of the door and door frame
• Direction the door opens can be freely chosen. Please advise on preference when ordering!
• Door position, as standard, central on the longest side. Please indicate when placing your order!

Note

• Winter equipment for outdoor use is available for an additional charge.
• Special bodies possible - please enquire when ordering - special bodies are may not be returned!
• Please indicate special requests such as door stops or winter equipment in the comments field when ordering. Subsequent changes are not possible.
• Delivery without cooling unit
• Interior lighting not included in deep-freeze cell delivery – interior lighting is included in purchase of cooling unit

Guidelines

• Produced according hygiene and safety requirements
• EU, CE and the product has been produced in accordance
• Corresponding to the EU guidelines (Halon regulations)
• Material corresponds to the European Food Product Standards

OPTIONAL ACCESSORIES:

• Shelves

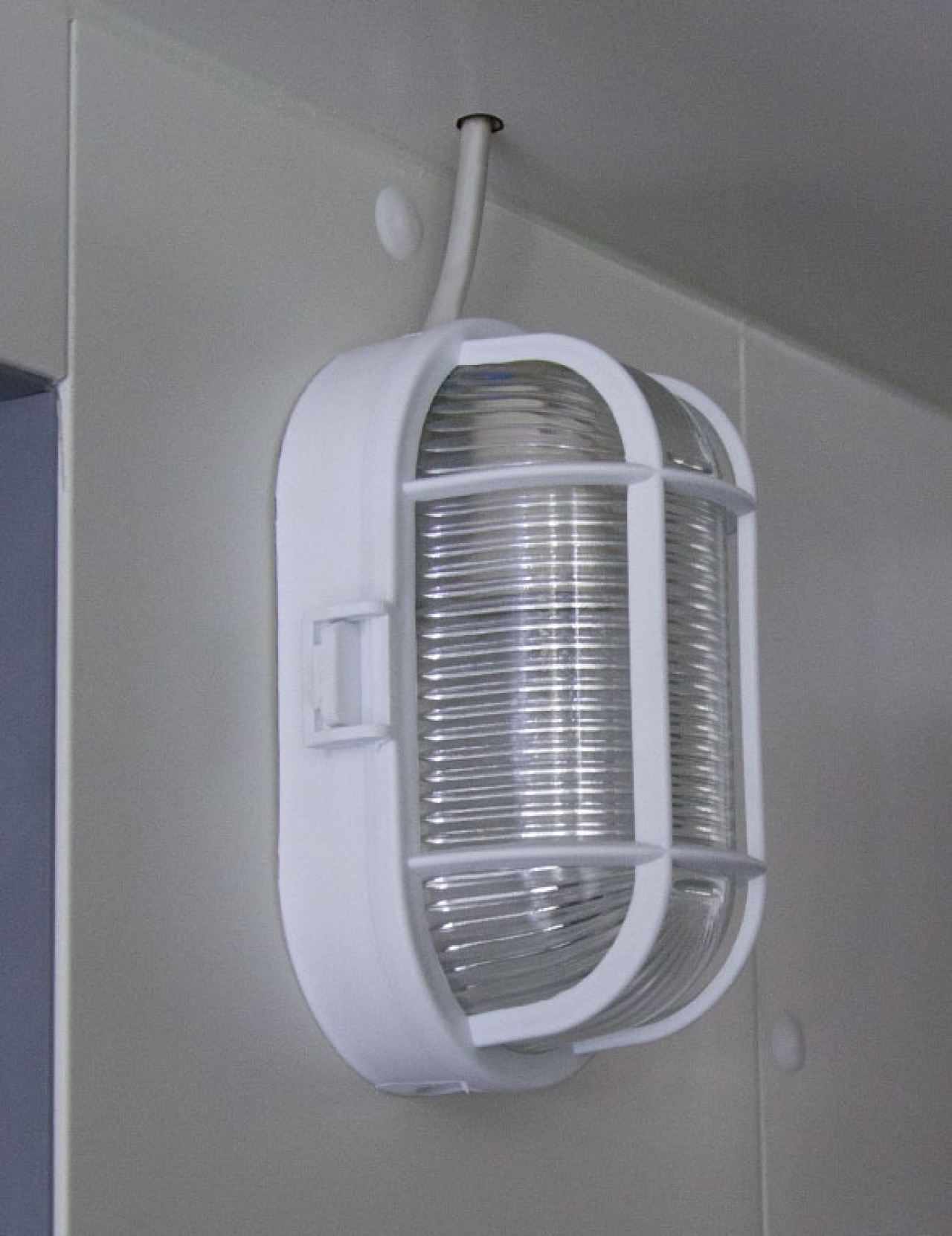

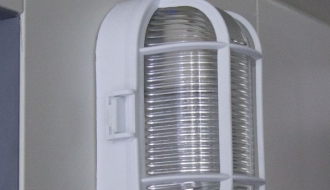

• Interior lighting
• Refrigeration unit
• Cold protection segment
